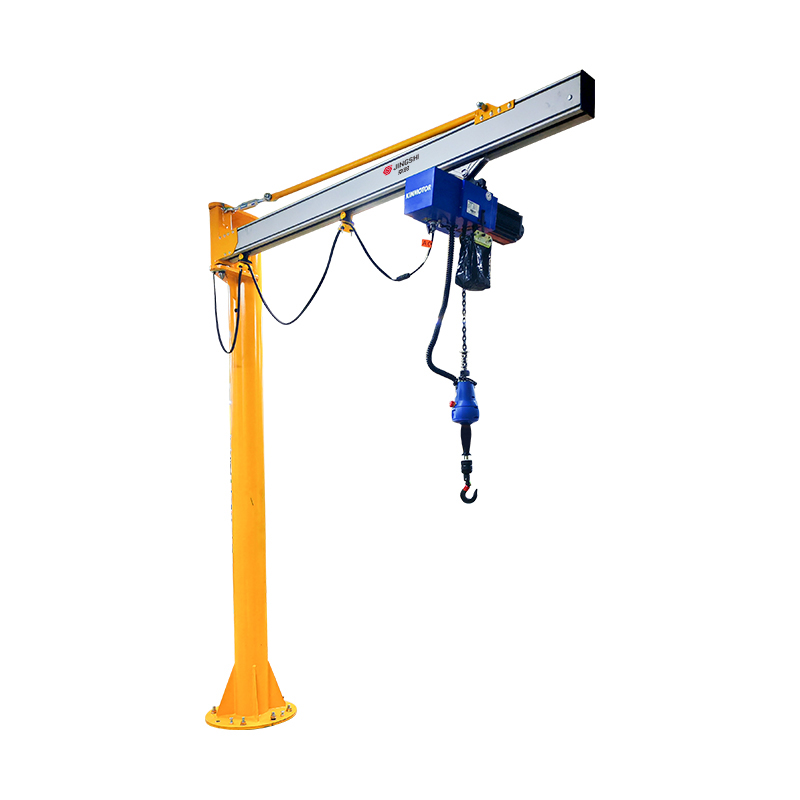

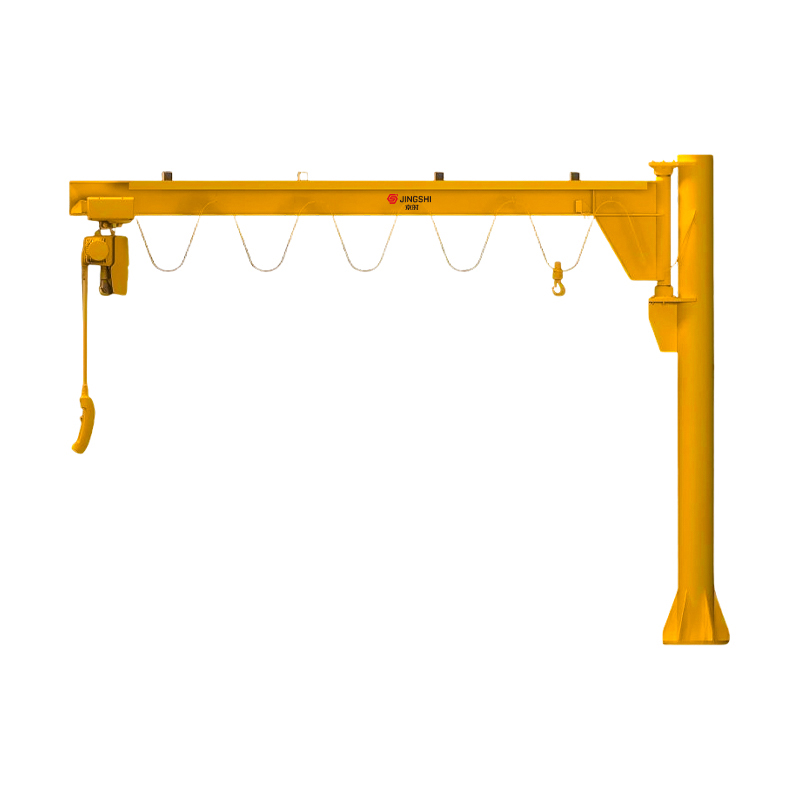

Fixed Jib Crane

Technical Specifications & Selection Guide

Span & Height Customization: Before ordering, measure your workshop's column spacing and ceiling height carefully. We recommend reserving extra hook height to avoid installation conflicts with overhead obstacles.

Rotation Angle Considerations: Our standard models offer 360° rotation. However, if your workshop has obstructions like pipes or electrical cabinets, we can customize the rotation limit to 180° or 270° to fit your layout perfectly.

Load Capacity Logic: The 125kg-500kg capacity range is specifically optimized for high-frequency, lightweight lifting tasks. This ensures structural stability without the cost of over-engineering for heavier loads you may never lift. For loads exceeding 500kg, customization is available to meet your specific heavy-duty lifting needs.

Key Application Scenarios

CNC Machine Tending: Our fixed jib cranes are designed to reduce manual handling fatigue and improve cycle times when loading and unloading heavy metal parts. The precise positioning ensures your expensive CNC equipment remains safe during operation.

Mold & Die Maintenance: In mold workshops, safety is paramount. Our cranes provide the stability required for flipping and positioning heavy molds, significantly reducing the risk of accidents during maintenance.

Warehouse & Logistics: For facilities with high shelves where forklifts cannot reach, a fixed jib crane offers an ideal solution for picking items and organizing inventory in tight spaces.

Why Choose Fixed Over Gantry? Unlike gantry cranes that occupy valuable floor space, a fixed jib crane is anchored to the ground or a foundation, making it the superior choice for workshops with solid concrete floors but limited operational area.

Engineering & Safety Features

Robust Slewing Bearing: The core of our crane is the high-durability slewing bearing mechanism. It ensures smooth, low-friction rotation even after years of heavy industrial use.

Frequency Conversion Control: For tasks requiring inch-perfect positioning, such as delicate mold installation, our cranes feature advanced frequency conversion control. This eliminates load swing and ensures precise placement.

Standard Safety Compliance: Every unit comes equipped with overload protection and an emergency stop button, ensuring full compliance with international industrial safety standards.

FAQ

Q: What is the maximum rotation angle for a fixed jib crane?

A: Standard models offer 360° rotation, but we can customize 180° or 270° limits based on your workshop layout and obstructions.

Q: Do I need a special foundation for installation?

A: Yes, a fixed jib crane requires a solid concrete foundation with anchor bolts to support the overturning moment. We provide detailed foundation drawings with every order.

Q: Can this crane be used outdoors?

A: Yes, with appropriate weather-proofing treatments (IP55 rating or higher) and galvanized finishes, our cranes are fully suitable for outdoor industrial environments.
