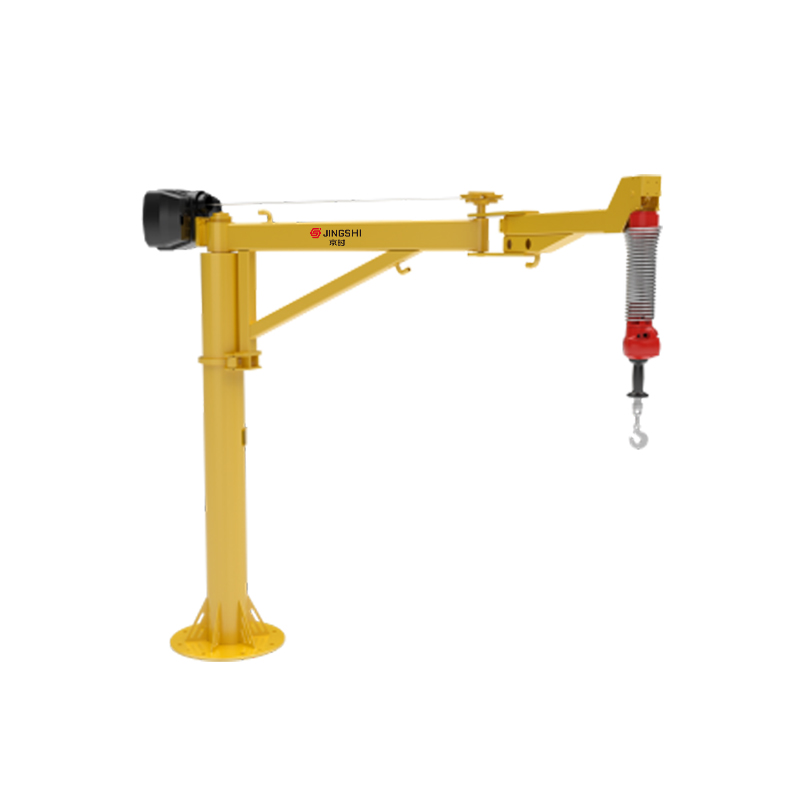

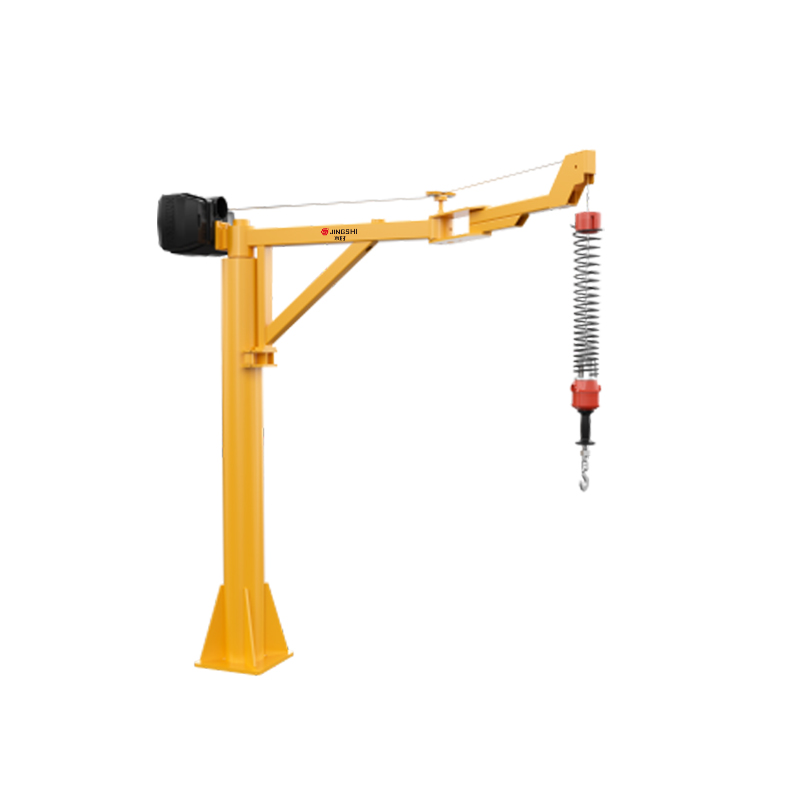

Fixed Folding Arm Crane

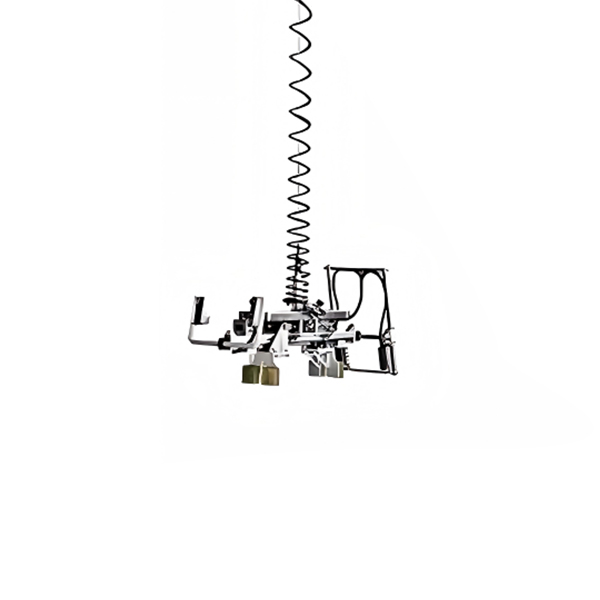

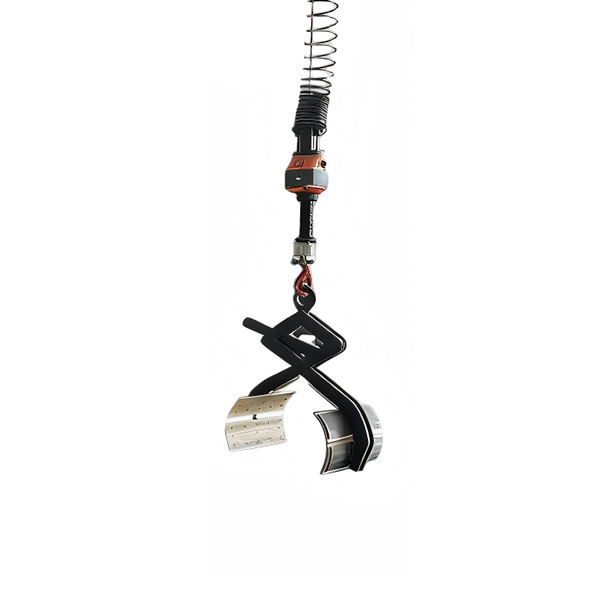

Fixed folding arm crane are pneumatically powered material handling equipment fixed to the ground, featuring an articulated boom structure. They consist of a fixed base, articulated boom assembly, end effectors (clamps, hooks, etc.), and a control system. Capable of gripping, lifting, folding, and precisely placing objects weighing 30-300KG, they are a core tool for improving the accuracy and efficiency of workstation handling in industrial settings.

Stable: The fixed base provides stable support at the workstation, preventing wobbling and slippage during operation—3 times more stable than mobile equipment.
Accurate: Dual control via articulated boom and pneumatics enables millimeter-level positioning, ensuring precise assembly without rework.
Effective: Power-balanced and labor-saving design allows one person to perform the work of three; space-saving design with folding mechanism.
Safe: Overload alarm and air-stop self-locking ensure zero displacement risk during fixed installation. Essential for mechanical assembly, engine assembly, and mold replacement—precision and efficiency are both guaranteed!

PREV：Mobile Folding Arm Crane NEXT：No next article

Specification
About JINGSHI
Contact Us

Equipment Model	Rated load G	Swing Radius R1	Lifting Stroke H	Maximum Lifting Height H1	Lowest Point H2	Air Source Pressure P	Equipment Weight
SZJS-RS-30	30KG	2500mm	1000mm	2000mm	H1-H	0.5Mpa or above	110KG
SZJS-RS-50	50KG	2500mm	1000mm	2000mm	H1-H	0.5Mpa or above	160KG
SZJS-RS-100	100KG	2500mm	1000mm	2000mm	H1-H	0.5Mpa or above	230KG
SZJS-RS-200	200KG	2500mm	1000mm	2000mm	H1-H	0.5Mpa or above	360KG
SZJS-GDXG-300	300KG	2500mm	1000mm	2000mm	H1-H	0.5Mpa or above	Customized
