Fixed Suction Cup Lifting Machine

I. Product Overview

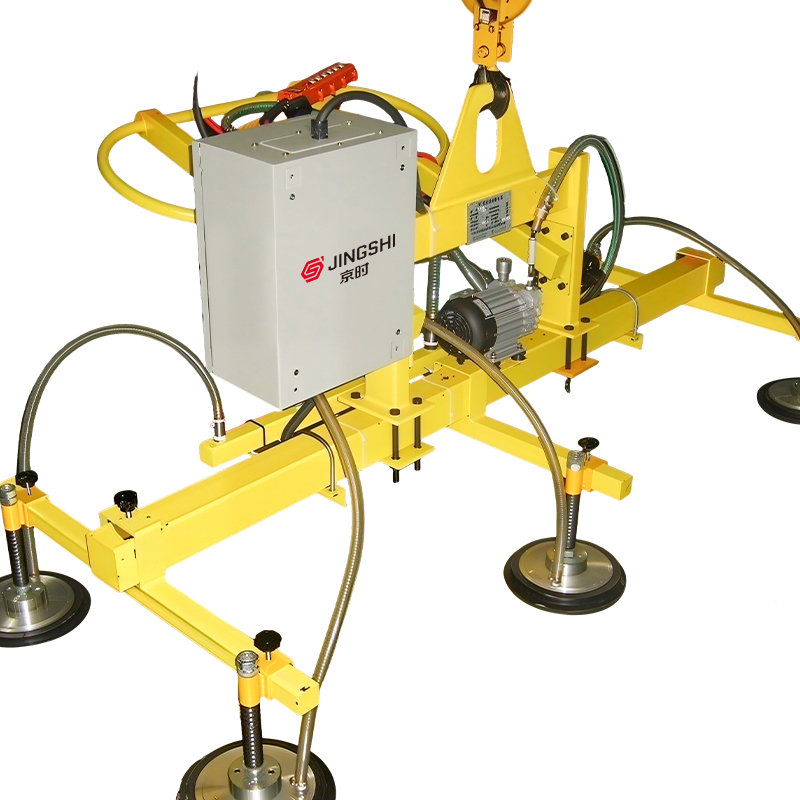

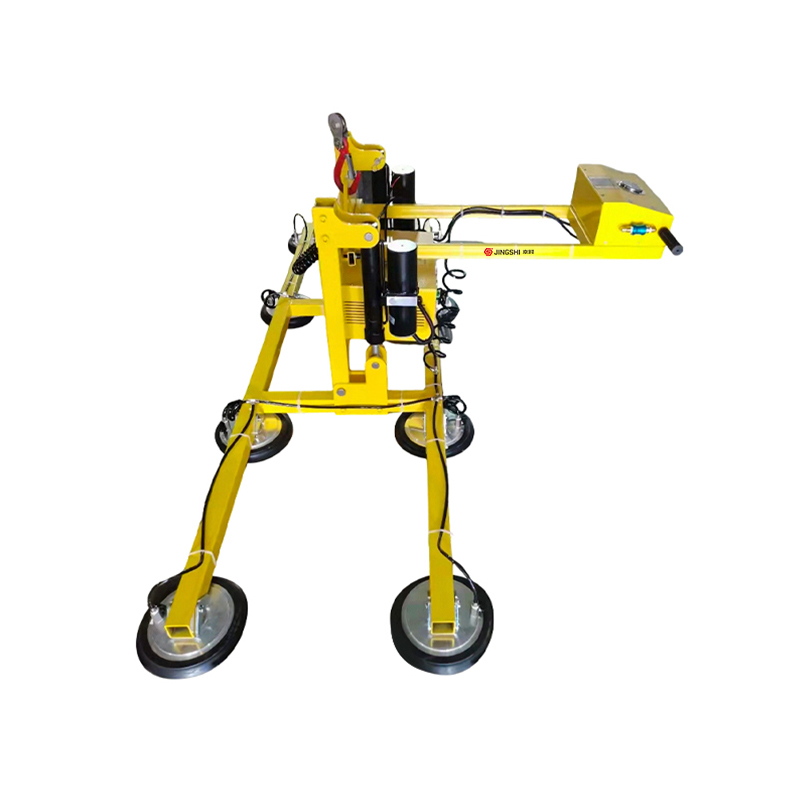

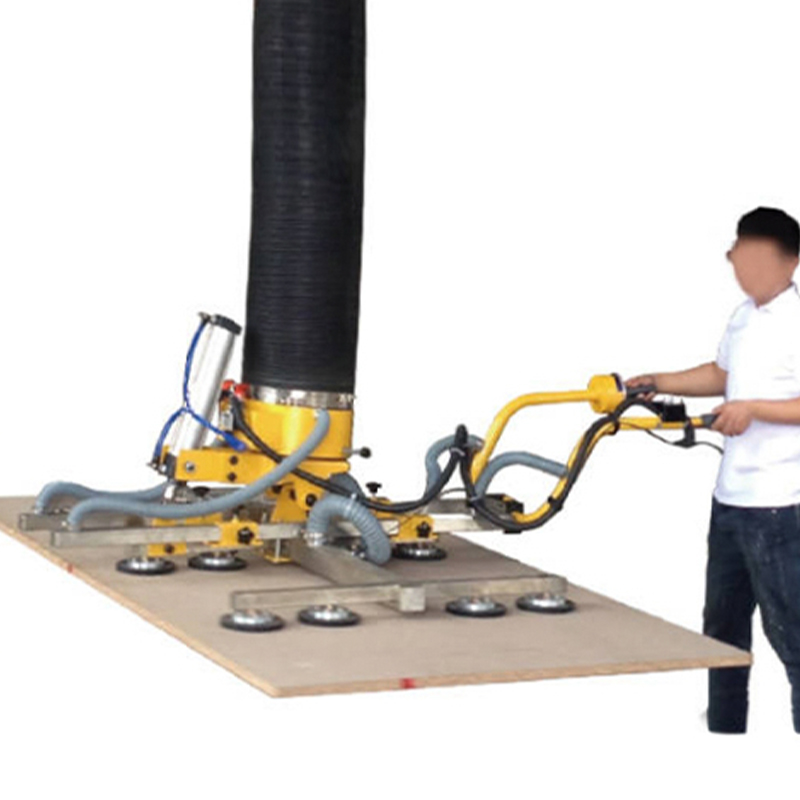

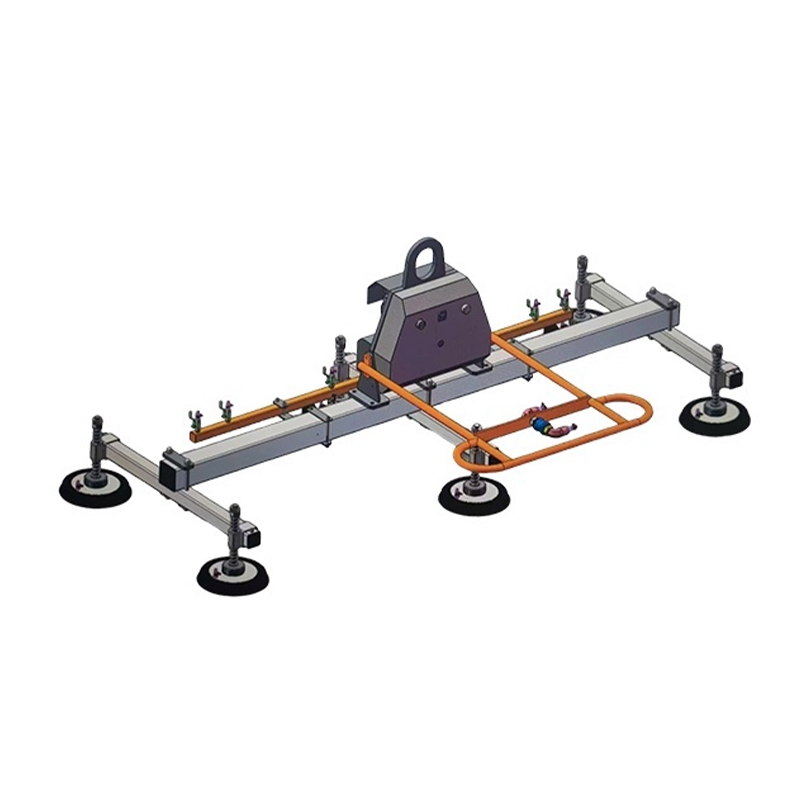

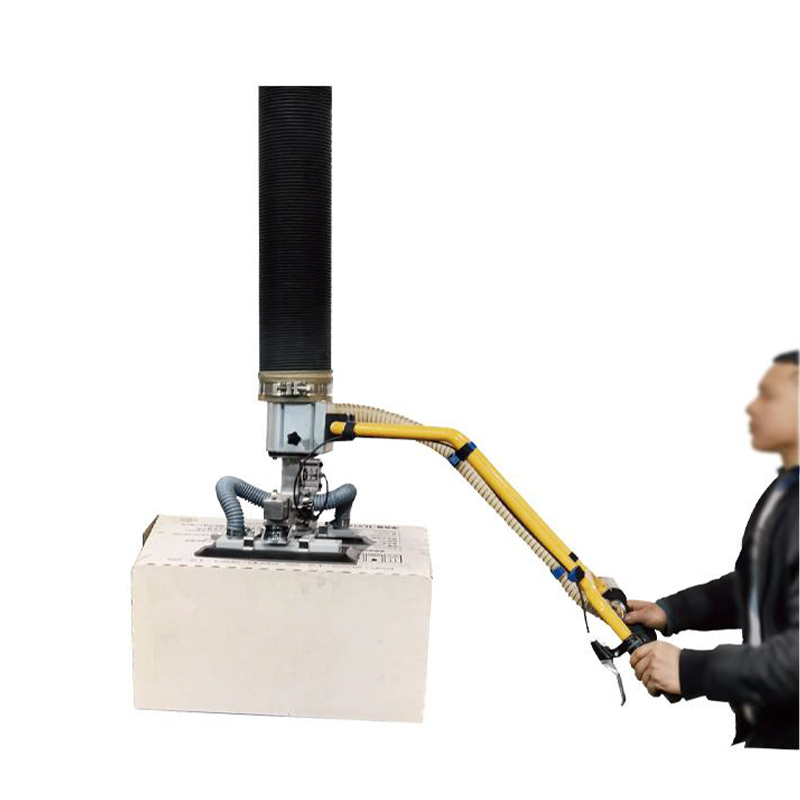

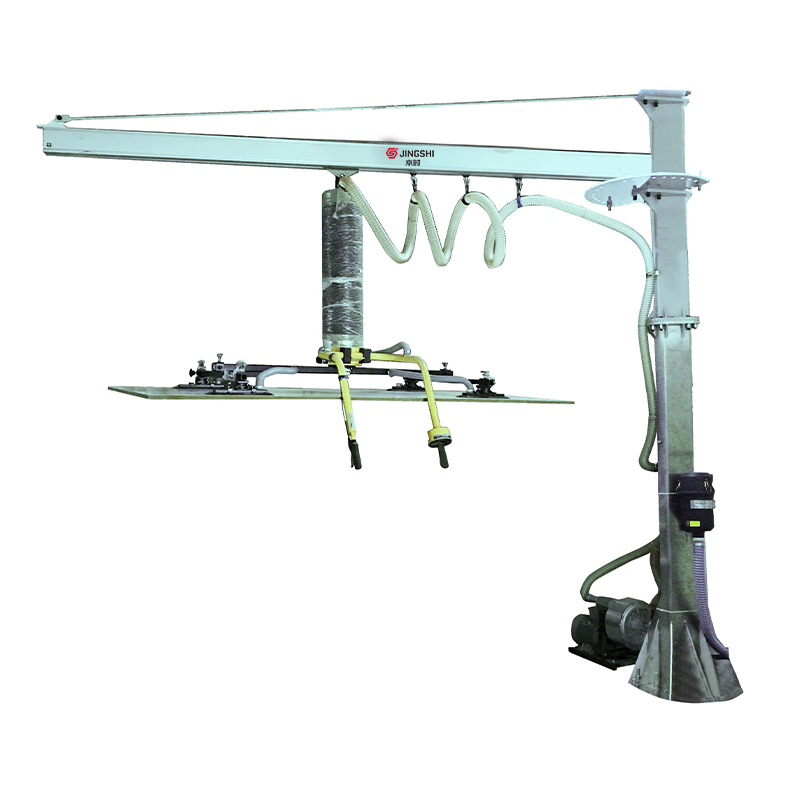

The two-hand grip vacuum lifter is a material handling device based on vacuum adsorption and operated by two hands. It uses suction cups to generate negative pressure to grip materials, and with an electric power system, it can lift, move, and place loads from 45-200KG. It is primarily suitable for handling irregularly shaped materials such as bags, cartons, and drums, making it a key tool for labor-saving material handling in light industry and warehousing.

II. Product Advantages
·Effortless Operation: The two-handed grip design + vacuum adsorption allows operators to easily move materials weighing up to 100 kg by simply operating the handle, significantly reducing labor intensity.
·High Adaptability: Suction cups can be customized according to material type (bags, cartons, drums, and irregularly shaped suction cups are available), compatible with handling multiple types of materials.
·Safe and Efficient: Stable vacuum adsorption, equipped with a pressure monitoring device to prevent material slippage, and a lifting stroke of up to 2500mm to meet various height operation needs.
·Flexible Customization: Supports pneumatic 90° rotation and other customized functions to adapt to special operating angle requirements.

III. Applications
Widely used in the food (handling bagged snacks, barrelled raw materials), logistics (carton palletizing, bagged cargo transfer), chemical (handling bagged granular materials), and electronics (transfer of irregularly shaped components) industries, especially suitable for scenarios requiring frequent handling of lightweight materials such as bags, boxes, and barrels.

IV. Equipment Performance
·Rated load: 45-200KG, covering specifications of 45KG, 60KG, 80KG, 120KG, 150KG, and 200KG;
·Lifting height: 1700/2500mm, meeting the height requirements of different workstations;
·Maximum power: 3.0-5.0kw, ample power; Rated voltage: 380V, suitable for industrial power environments;
·Suction cup configuration: Bag suction cups, SFDHB series carton suction cups, HB corrugated barrel suction cups, and irregularly shaped suction cups are available; customization is supported.

V. Features
·Vacuum Adsorption: Stable negative pressure adsorption ensures reliable material gripping and prevents slippage during handling;
·Customized Suction Cups: Dedicated suction cups are configured for different materials such as bags, cartons, and drums, improving handling adaptability;
·Function Expansion: Supports customized functions such as pneumatic 90° rotation to meet special operating angle requirements;
·Intelligent Monitoring: Some models are equipped with vacuum pressure monitoring to ensure operational safety in real time.

PREV：No previous article NEXT：Mobile Suction Cup Lifting Machine

Specification
About JINGSHI
Contact Us

Model		ESL-MD140/22	ESL-MD160/30	ESL-MD180/30	ESL-MD200/40	ESL-MD275/50	ESL-MD300/50
Maximum load capacity		45kg		80kg		150kg
Increase height		1700/2500mm		1700/2500mm		1700/2500mm
Maximum power		3.0 kw		4.0 kw		5.0 kw
Suction head configuration (based on the configuration of the workpiece being gripped)	Bagged products	Bag suction cups SUS230*380R		Bag suction cups SUS230*380R		——
	Cardboard box / chassis	Suction Cup SFD/HB Series	Suction Cup SFD/HB Series	Suction Cup SFD/HB Series	Suction Cup SFD/HB Series	Suction Cup SFD/HB Series	Suction Cup SFD/HB Series
	Barrel products	Circular irregular suction cup	Circular irregular suction cup	Circular irregular suction cup	——	——	——
	Other irregularly shaped products	Customizable	Customizable	Customizable	Customizable	Customizable	Customizable
	Pneumatic rotation 90°	Customizable	Customizable	Customizable	Customizable	Customizable	Customizable
Rated voltage		380V	380V	380V	380V	380V	380V
