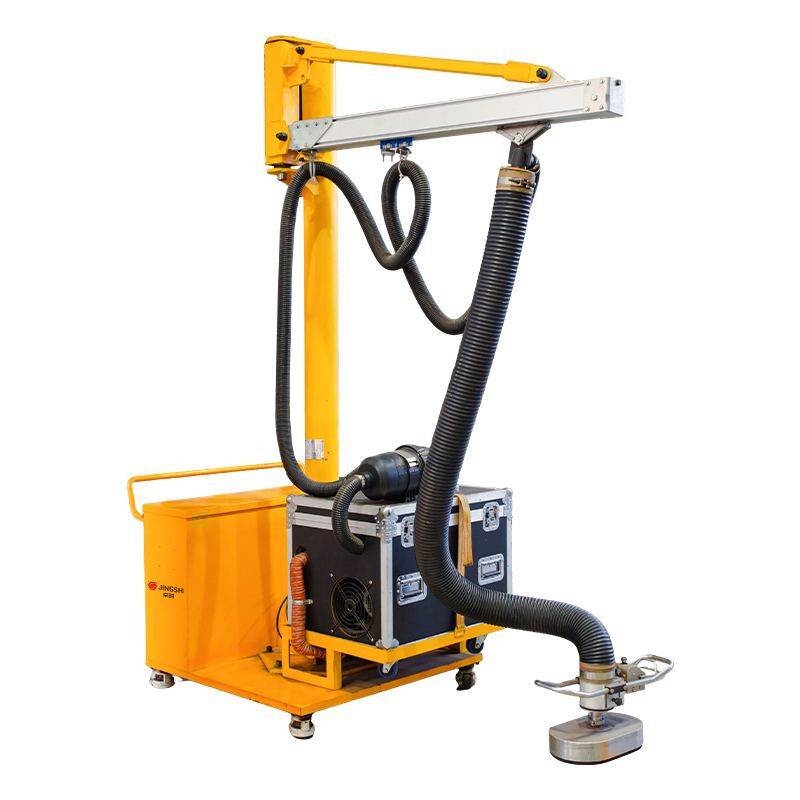

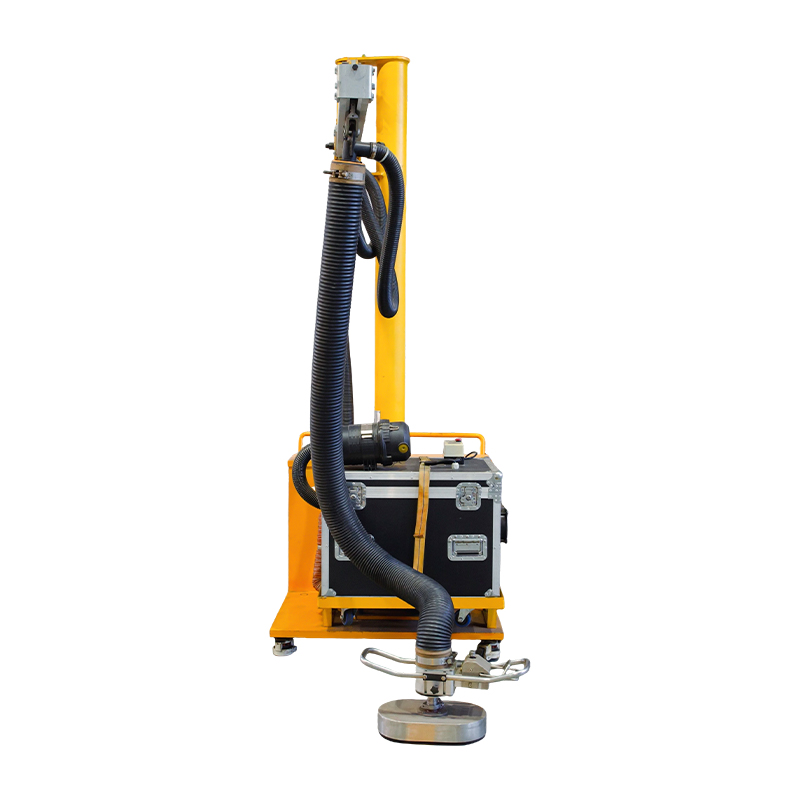

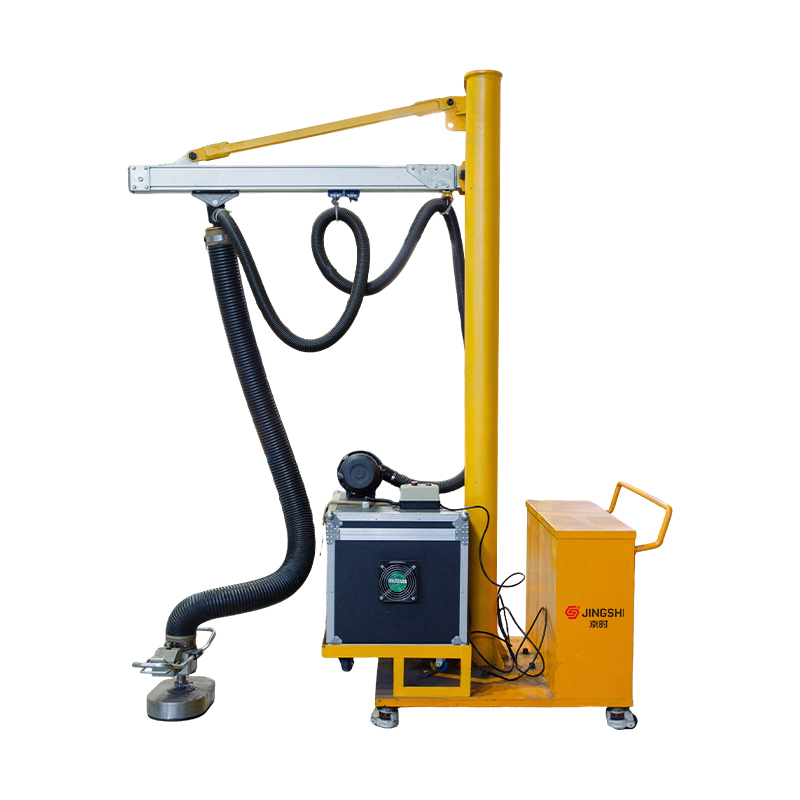

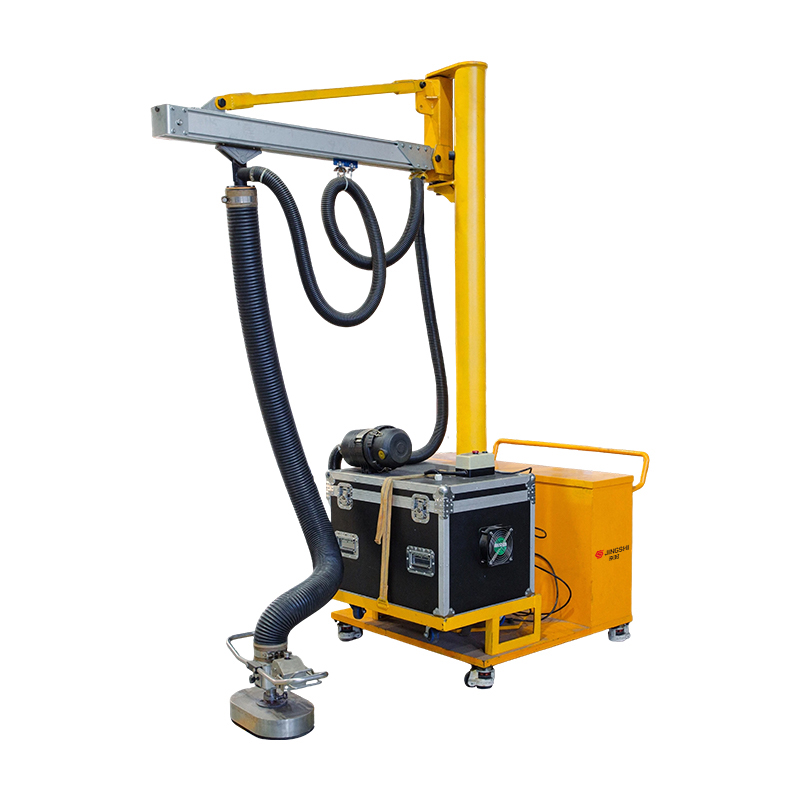

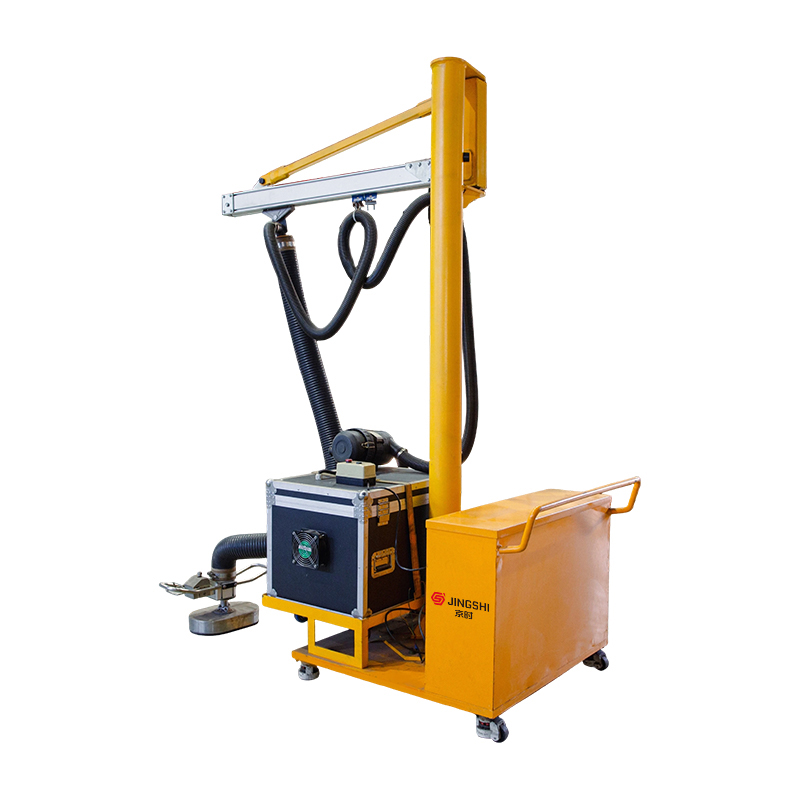

Mobile Suction Cup Lifting Machine

Mobile Pull-Up Vacuum Lifter: Effortless Handling for Bags, Cartons & Drums

In the fast-paced environments of logistics and light industry, manual handling of repetitive loads is not just tiring—it's a bottleneck. The JINGSHI Pull-Up Vacuum Lifter is engineered to solve this exact challenge. Unlike traditional lifting equipment that requires complex rigging, our mobile suction cup lifting machine utilizes advanced vacuum adsorption technology combined with an intuitive pull-up operation.

Designed for versatility, this equipment allows a single operator to safely lift, transfer, and place loads ranging from 35kg to 80kg. Whether you are palletizing cartons in a warehouse, moving bagged ingredients in a food factory, or transporting chemical drums, this lifter transforms a heavy, two-person job into a smooth, one-person operation. It is the ultimate labor-saving tool for businesses aiming to boost efficiency while prioritizing workplace safety.

Two Control Modes to Match Your Operation

We offer two control unit options so the operator interface fits your team's preference:

Joystick Control Unit: A single joystick switches between grab, lift, lower, and release. Vacuum level inside the lift tube is set by joystick position — push to the top stop to lift, return to the bottom to vent and release, with multiple intermediate height levels in between.

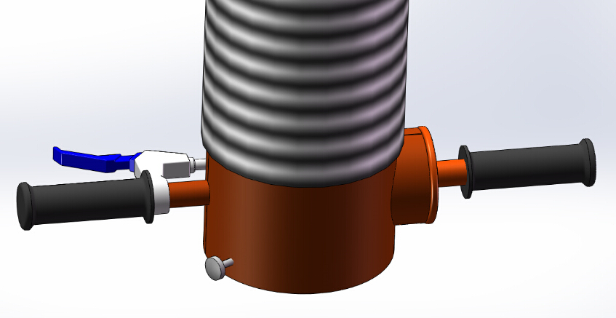

Rotary Handle Control Unit: The right-hand rotary grip manages grab, lift, and lower, while a separate left-hand brake lever handles release — keeping the load locked at a fixed height and orientation until the operator deliberately disengages it. Nothing releases from the suction cups unless the brake lever is pressed.

Both configurations use ergonomic, low-effort handles designed to reduce operator fatigue across a full shift.

Why Choose JINGSHI's Vacuum Lifting Technology?

Intuitive Pull-Up Operation: We understand that complex controls slow down workflow. Our ergonomic pull-up design allows operators to lift 35-80kg loads with minimal physical effort, significantly reducing the risk of back strain and fatigue.

Specialized Suction for Every Material: One size does not fit all. We equip our lifters with specific suction cups tailored to your needs:

SFDHB Series for Cartons: Ensures a secure grip on standard cardboard boxes without crushing the edges.

HB Series for Corrugated Drums: Designed to conform to curved surfaces, preventing dangerous slips during chemical transfers.

Bag Suction Cups: Perfect for handling porous bagged goods like flour or grains without leakage.

Safety & Stability: With a stable vacuum adsorption system and a lifting height of up to 2500mm, our lifters are built for multi-station operations where safety cannot be compromised.

Flexible Customization: We go beyond standard specs. Our team can customize the lifting weight, height, and operational range based on your actual work site. Whether you have specific spatial limitations or unique load requirements, we provide a tailored solution that adapts to your environment.

Fully Customized Solutions for Your Specific Workspace

We understand that every warehouse and production line has unique constraints. That's why JINGSHI offers fully customizable vacuum lifting solutions tailored to your exact on-site requirements. We don't just sell standard machines; we engineer equipment that fits your workflow perfectly.

Customizable Lifting Capacity & Height: Whether you need to handle lighter loads or require a specific reach, we can adjust the rated load (from 35kg to 80kg and beyond) and lifting height to match your racking systems and operational needs.

Tailored Working Range & Mobility: Is your workspace narrow or complex? We can customize the equipment's dimensions and mobility features to ensure it operates efficiently within your specific working range, eliminating maneuvering issues in tight aisles.

On-Site Adaptability: From power supply adjustments to specialized suction cup designs for irregular materials, our engineering team ensures the lifter is perfectly adapted to your work site environment.

Versatile Applications Across Industries

Our vacuum lifters are trusted in diverse sectors for high-frequency handling tasks:

Logistics & Warehousing: Streamline carton palletizing and bagged goods transfer, reducing loading times by up to 50%.

Food Industry: Hygienically handle bagged snacks and raw materials, ensuring zero contamination.

Chemical Industry: Safely transport heavy barrelled raw materials, mitigating the risk of leaks and worker injury.

FAQ

Q: What types of materials can this vacuum lifter handle?

A: Our mobile suction cup lifter is highly versatile. It is primarily designed for lightweight materials such as cartons, bagged goods (flour, sugar, grains), and corrugated drums. We also offer customized suction cups for irregularly shaped objects.

Q: Can the lifting height and capacity be customized?

A: Yes. We understand that every workspace is different. We can fully customize the lifting capacity, height, and working range to perfectly fit your specific work site conditions and operational workflow.

Q: Is the vacuum lifter safe to use for heavy loads?

A: Absolutely. Safety is our priority. The system uses stable vacuum adsorption technology that prevents materials from falling off during handling. Additionally, the ergonomic pull-up operation reduces physical strain on workers, making it safer than manual lifting.

Q: What is the power requirement for this equipment?

A: Yes. The wheeled base and 360° rotating boom are specifically designed so operators can reposition the entire unit and reach a wide working radius without re-installing or re-anchoring the equipment.

Q: Can one machine be used across multiple work stations?

A: The standard configuration operates on a 380V industrial voltage with a maximum power of 2.2-3.0kW, ensuring it meets the demands of rigorous industrial environments.

Q: Is the equipment noisy on the production floor?

A: No. The vacuum pump and blower are housed in a sealed, noise-reducing enclosure with forced-air cooling, so it meets factory noise standards while still providing enough cooling for continuous operation.
