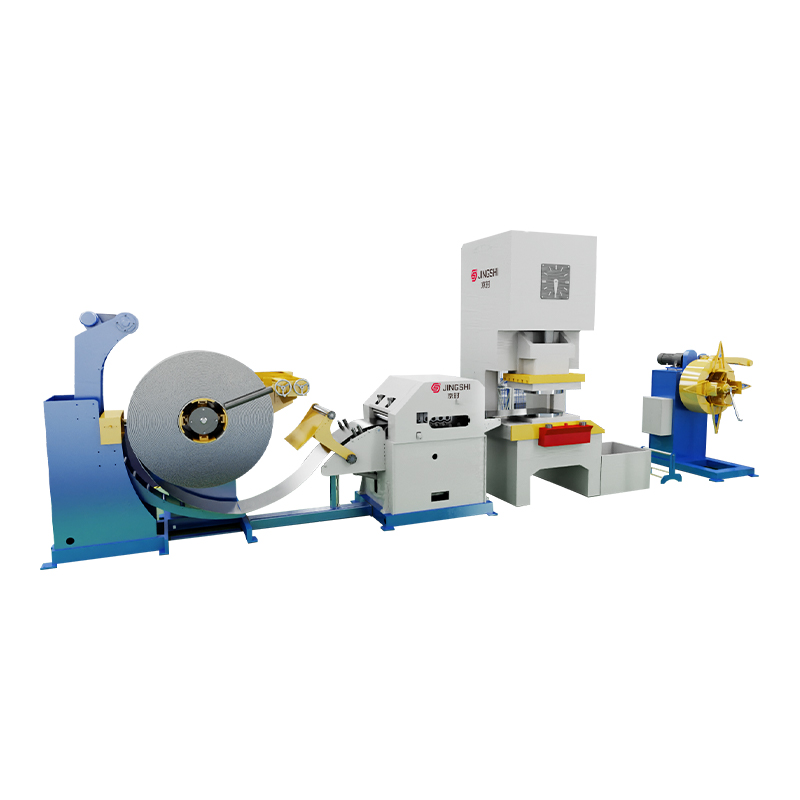

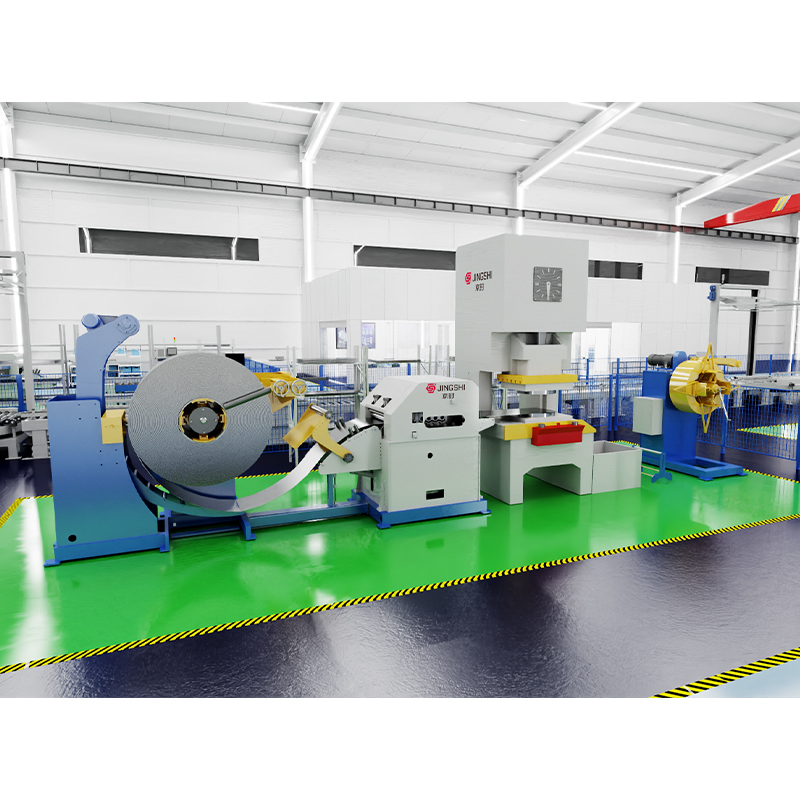

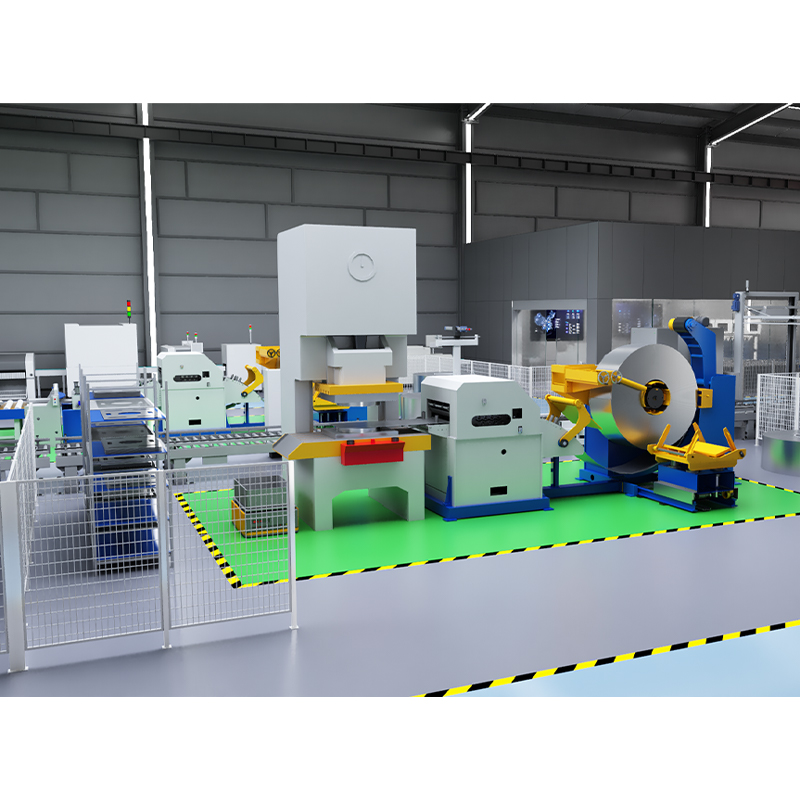

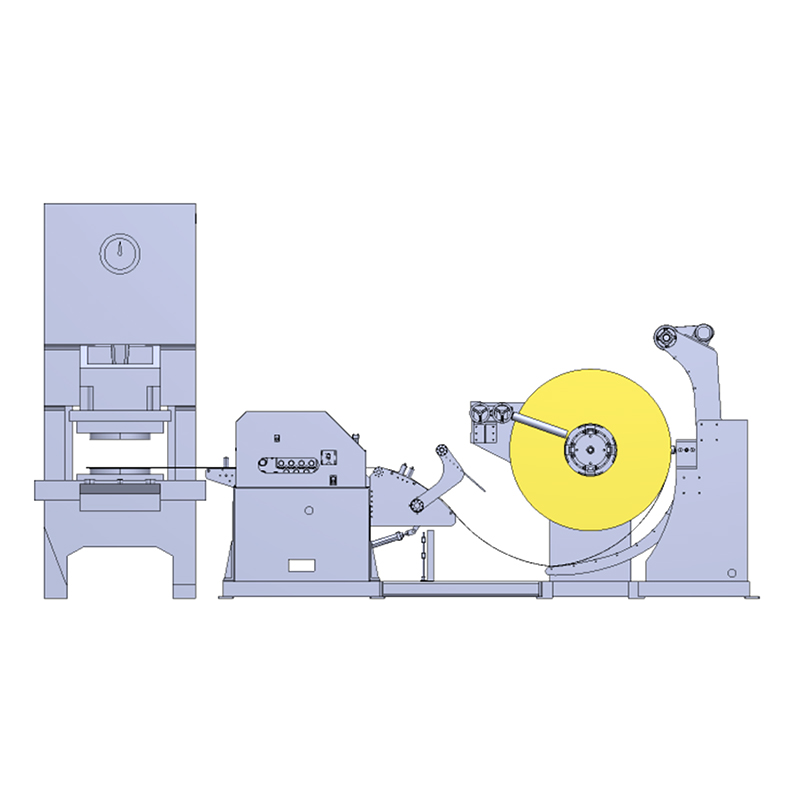

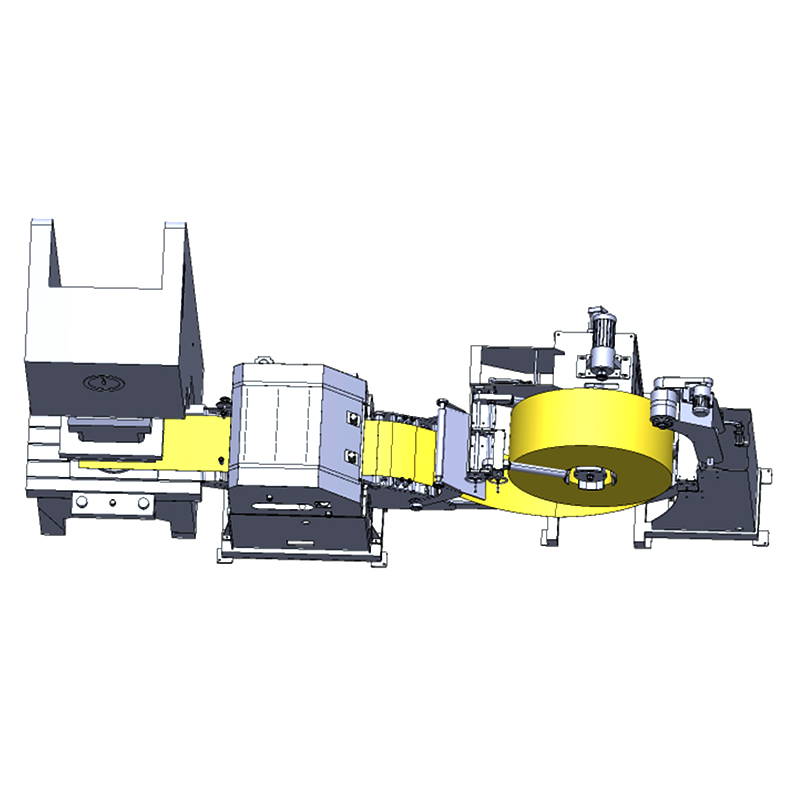

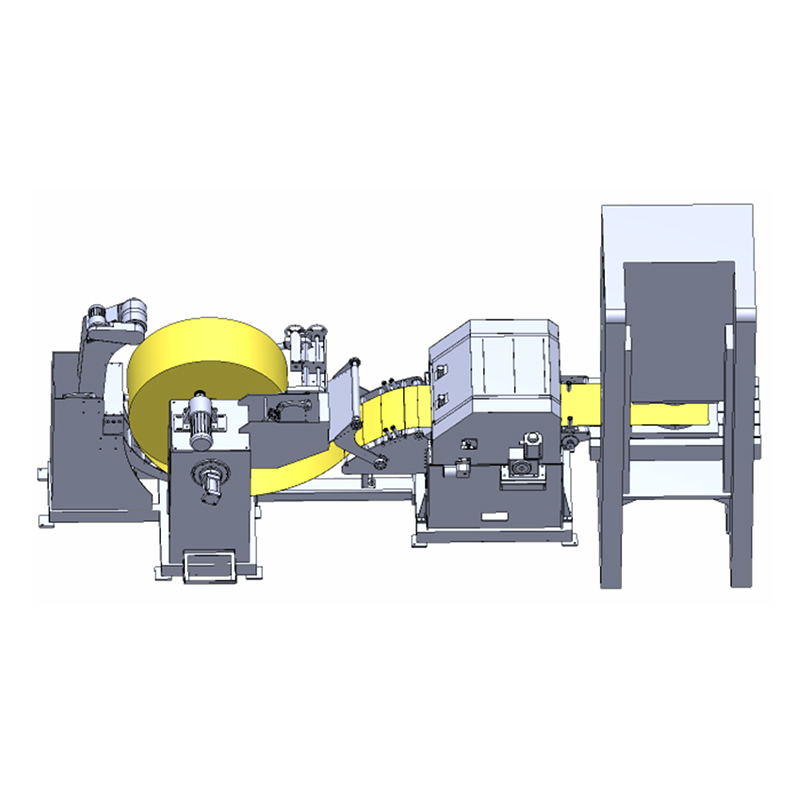

High-Speed Decoiler Straightener Feeder Punching Line (3-in-1 Servo Feeding System)

Core Value Highlights

High Precision: Servo feeding accuracy controlled within ±0.05mm, ensuring zero misalignment for high-volume orders.

Material Versatility: Capable of processing cold-rolled steel, stainless steel, aluminum, and copper (Thickness: 0.3mm - 60mm; Width: up to 2100mm).

Cost Efficiency: Fully automated operation reduces labor costs by up to 60% (saves 2 operators per line) with an estimated ROI period of 8-12 months.

Proven Stability: Verified in our lab to run continuously at 30 meters/minute with vibration amplitude kept below 0.02mm.

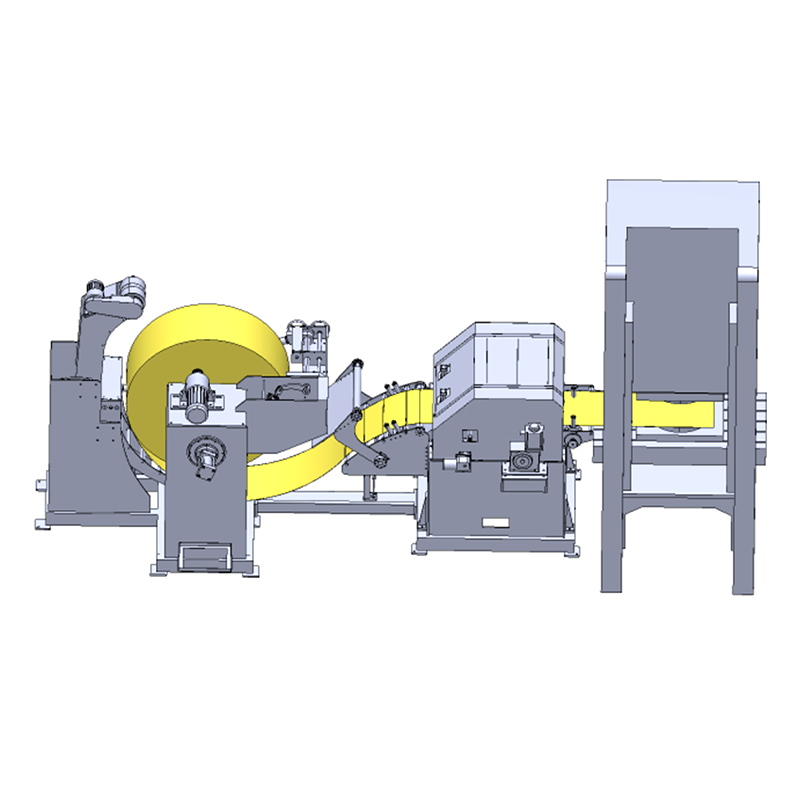

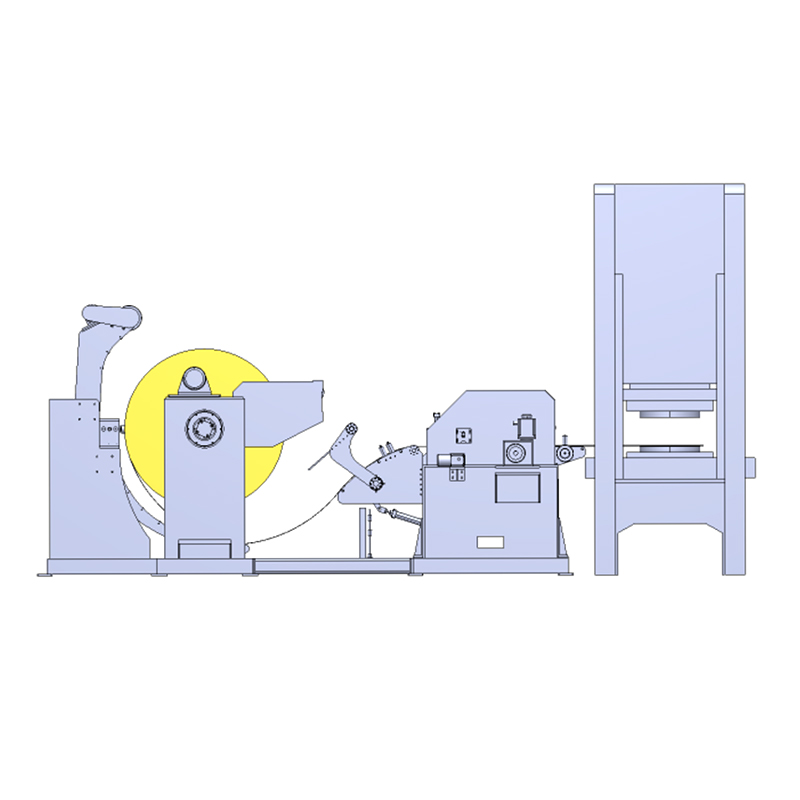

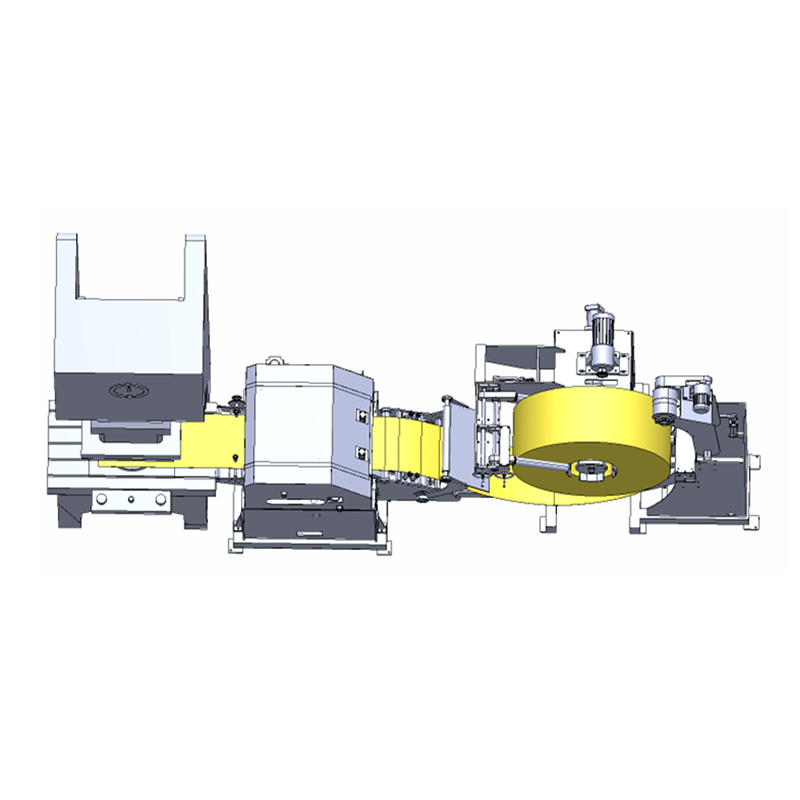

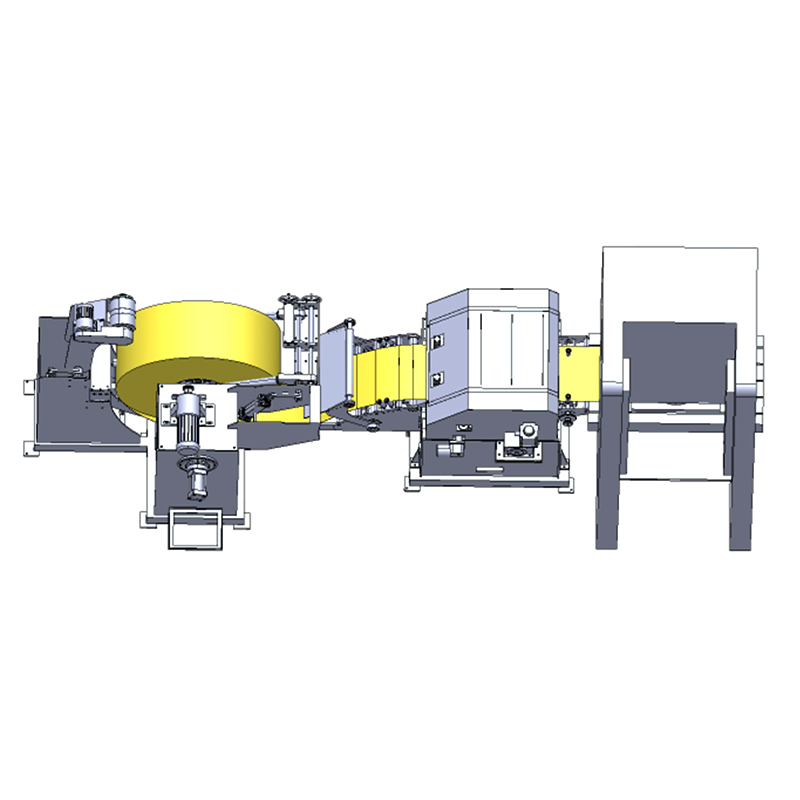

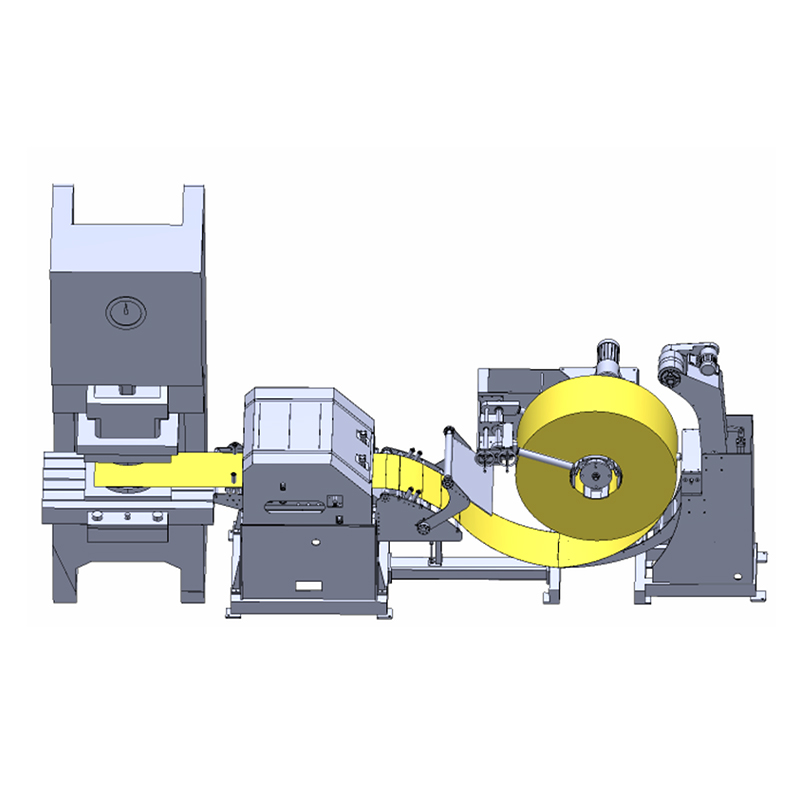

How It Works: The 4-Stage Automated Workflow

Our integrated system ensures a seamless transition from coil to stamped part. The entire process is managed via a centralized PLC touch screen, minimizing human error.

Hydraulic Uncoiling & Loading: The hydraulic expansion mandrel securely holds the coil. A motorized loading cart assists in placing heavy coils, while the pressure arm prevents material loosening during high-speed rotation.

Precision Leveling (Straightening): The material passes through a high-density set of 23 precision rollers (11 upper, 12 lower, or customized). The worm-gear adjustment mechanism compensates for material thickness variations, eliminating internal stress and coil curvature to achieve a flatness of ≤0.3mm/m.

Servo Feeding: Driven by a high-response AC servo motor, the feeder sends the material into the punch press with a preset pitch. The system syncs perfectly with the press cam signal, supporting multi-step feeding patterns.

Continuous Stamping: The press performs the stamping action. Our system features a "material loop" control that dynamically adjusts the decoiler speed to match the feeder, preventing material drag or slack.

Why Choose Our 3-in-1 Feeding Line?

Unlike generic suppliers, we focus on the details that impact your daily production:

Surface Protection Technology: Our leveling and feeding rollers undergo hard chrome plating and surface grinding. For sensitive materials (like brushed stainless steel or aluminum), we offer polyurethane-coated rollers to prevent scratches and indentations.

Intelligent Loop Control: The system uses a 3-zone photoelectric sensor to monitor the material loop height. If the loop drops below 300mm, the decoiler accelerates to 1.5x speed; if it exceeds 450mm, it slows down. This PID algorithm ensures the material is never pulled too tight or allowed to tangle.

Quick Die-Change Support: The entire machine height can be adjusted via the control panel (±50mm) to match different press bed heights, reducing die-change setup time from 2 hours to just 15 minutes.

Safety First: Equipped with a "Tail-End Protection" feature that automatically stops the machine when the material ends, preventing the roller tail from snapping back and injuring operators.

FAQ

Q: What is the difference between a 2-in-1 and a 3-in-1 feeder?

A: A 2-in-1 separates the decoiler from the straightener/feeder, requiring more floor space and a longer material loop. The 3-in-1 integrates all three functions into one unit, saving roughly 30-50% of space and offering better synchronization for high-speed stamping.

Q: Can this machine handle pre-painted or galvanized sheets without damage?

A: Yes. We can equip the machine with nylon-coated or rubber-coated pressure rollers and guide wheels. Additionally, an optional oiling device can be added to apply a thin protective film during feeding.

Q: How difficult is it to operate and maintain?

A: The system uses a user-friendly HMI (Human-Machine Interface). Operators can save up to 20 sets of material parameters for one-touch recall. Maintenance is simplified with modular components; for instance, the leveling rollers can be accessed and cleaned easily.
