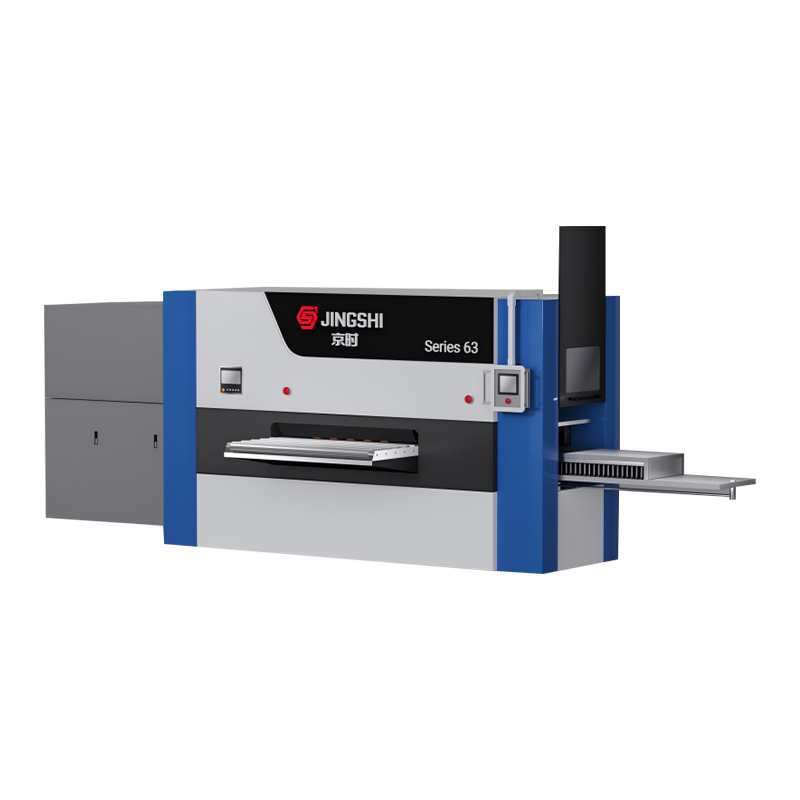

63 Series Thick Plate High-Efficiency Hydraulic Leveling Machine

I. Product Overview
The 63 Series Thick Plate High-Efficiency Hydraulic Leveling Machine is specifically designed for thick plate processing. It features a high-strength machine body and a high-power hydraulic system, suitable for precise leveling of metal sheets with a thickness of 8-20mm. It can quickly correct severe deformation after rolling, cutting, and stamping of thick plates, meeting the core requirements of heavy manufacturing industries for the flatness of thick plates.

II. Core Advantages
·High machine body rigidity and outstanding load-bearing capacity ensure stability in thick plate processing.
·High output power of the hydraulic system increases leveling efficiency by 30% compared to conventional equipment, suitable for mass production.
·Precision roller system design ensures flatness error ≤ ±0.03mm, providing stable processing accuracy.
·Suitable for high-strength and high-hardness thick plate materials, offering strong versatility and low maintenance costs.

III. Applicable Applications
·Metal Sheets: High-strength thick steel plates, alloy thick plates, hot-rolled thick plates, large structural components, heavy stamping parts, etc.
·Application Scenarios: Engineering machinery manufacturing, steel structure processing, container production, machine tool bed processing, ship parts manufacturing, etc.

IV. Equipment Performance
·Processing Plate Thickness: 8-20mm
·Number of Leveling Rollers: Multi-roller configuration (standard ≥17 rolls)
·Roller Surface Hardness: HRC63-66 (high wear resistance, impact resistance)
·Hydraulic System Pressure: 2.0-3.0Mpa
·Maximum Processing Width: ≤2000mm (custom widening supported)
·Maximum Processing Speed: 6-10m/min

V. Functional Features
·Graded Pressure Adjustment: Precisely adjusts hydraulic pressure in multiple levels according to plate thickness and hardness.High-Efficiency Heat Dissipation: ·Equipped with a forced cooling device in the hydraulic system to ensure continuous operation over extended periods.
·Safety Interlocks: Features overload protection, emergency stop, and plate misalignment alarm, among other safety functions.
·Roll System Adaptability: Supports fine-tuning of roll gaps to adapt to different plate thicknesses and elastic moduli requirements.

PREV：50 Series Four-Column Hydraulic Intelligent Precision Leveling Machine NEXT：80 Series Heavy-Duty Plate Hydraulic Ultra-Precision Leveling Machine

Specification
About JINGSHI
Contact Us

Thickness / Width	63-500-21	63-800-21	63-1300-21	63-1600-21	63-2100-21
1.2-5	500	800	1300	1600	2100
6	400	660	1080	1330	1700
8	300	500	810	1000	1300
10	250	400	650	800	1050
12	200	320	510	640	850
13	180	300	480	580	780
